VELUX Skylights - Proud Canadian Company

VELUX® is the world leader in skylights, SUN TUNNEL® skylights, and roof windows. For more than 80 years, VELUX has created better living environments by bringing daylight and fresh air into homes all over the world.

Proud Canadian Company emblem - English

CMDG Polycarbonate Hybrid Dome Skylight

Introducing the VELUX Polycarbonate Hybrid Dome Skylight! This unique skylight features both a glass pane and polycarbonate dome to stand tough while providing abundant natural light to the spaces below. Snow and rain easily roll off the curved exterior dome, making this an ideal daylighting option for Canadian homes with flat or low-sloped roofs.

Benefits of the Hybrid Dome Skylight

  • Modern frame design with no exposed screws
  • Structural glazing sealant creates an aquarium-like seal between the frame, polycarbonate dome and glass unit
  • Integrated dry fit gasket requires no curb sealant
  • Additional water protection through sealed and capped corners
  • Easy installation with flexible outside fastening flange

Sizes and Glass Options for CMDG


Size Code

2222

2246

3030

3434

4646

Outside frame (W"xH") 251⁄2 x
251⁄2		 251⁄2 x
491⁄2		 331⁄2 x
331⁄2		 371⁄2 x
371⁄2		 491⁄2 x
491⁄2
Max Skylight Clearance (W"xH") 265⁄8 x
265⁄8		 265⁄8 x
505⁄8		 345⁄8 x
345⁄8		 385⁄8 x
385⁄8		 505⁄8 x
505⁄8

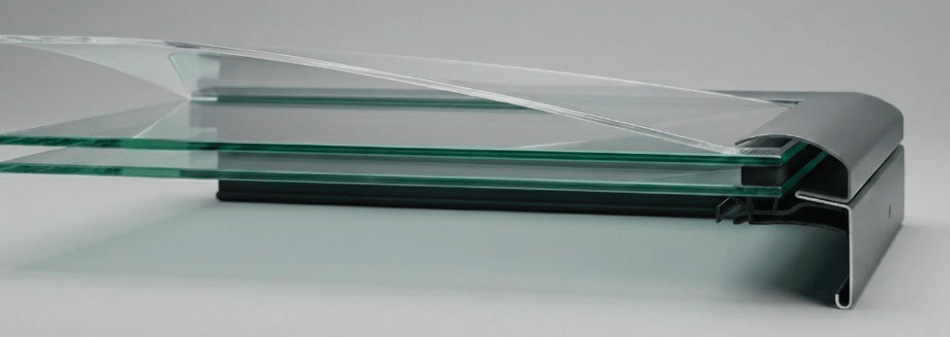

The Technology Behind the CMDG Polycarbonate Hybrid Dome Skylight

  • The sealed polycarbonate dome is designed to protect the glass from hail and debris, while shedding snow and rain
  • Ideal for both flat and sloped roof applications
  • Hybrid dome design offers enhanced durability and performance
  • Integrated sealed laminated glass unit with Low-E3 coating provides a significant increase in energy efficiency versus a standard dome skylight
  • Increase energy efficiency by up to 40% with available Room-Darkening or Light-Filtering Solar-Powered shades


The Technology Behind the CMDG Polycarbonate Hybrid Dome Skylight

  • The sealed polycarbonate dome is designed to protect the glass from hail and debris, while shedding snow and rain
  • Ideal for both flat and sloped roof applications
  • Hybrid dome design offers enhanced durability and performance
  • Integrated sealed laminated glass unit with Low-E3 coating provides a significant increase in energy efficiency versus a standard dome skylight
  • Increase energy efficiency by up to 40% with available Room-Darkening or Light-Filtering Solar-Powered shades

Add Solar-Powered Skylight Shades

Room Darkening

Unique, double-pleated honeycomb structure adds an extra layer of fabric to block bright sunlight in room darkening shades.

Light Filtering

Light-filtering, single-pleated shades softly diffuse natural light, helping prevent glare.

Remote Control Included
